Models Available:

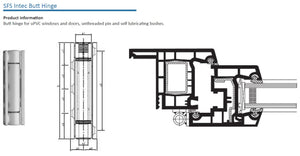

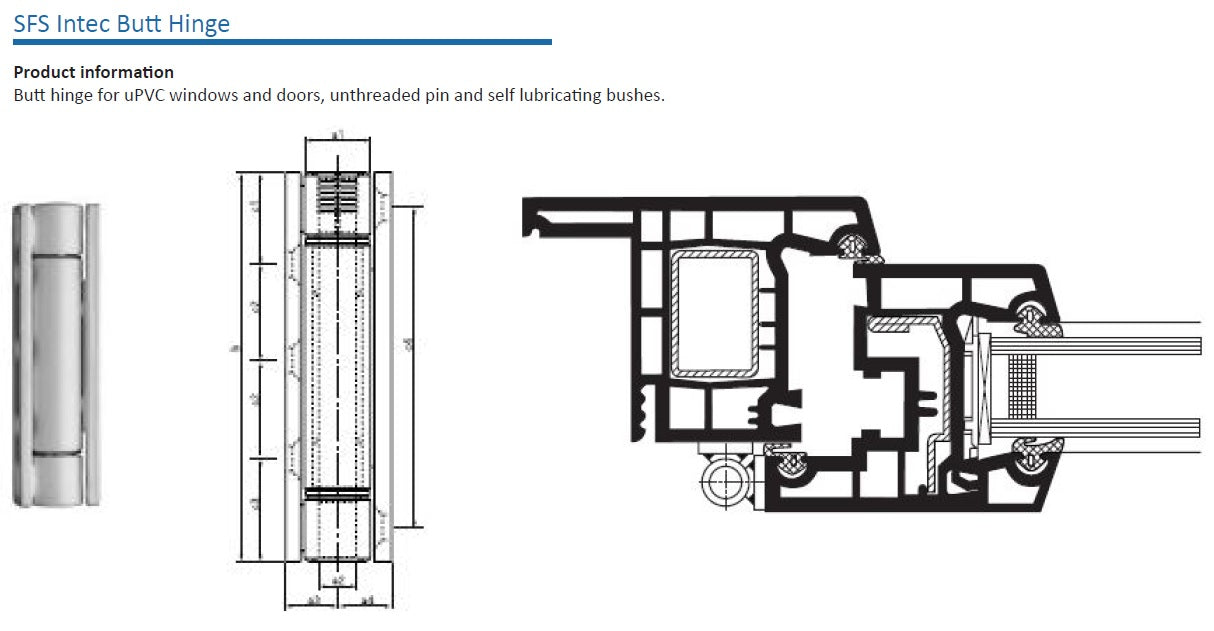

Butt Hinge (20kg capacity)
Dynamic 3D (24mm Groove) 160kg capacity

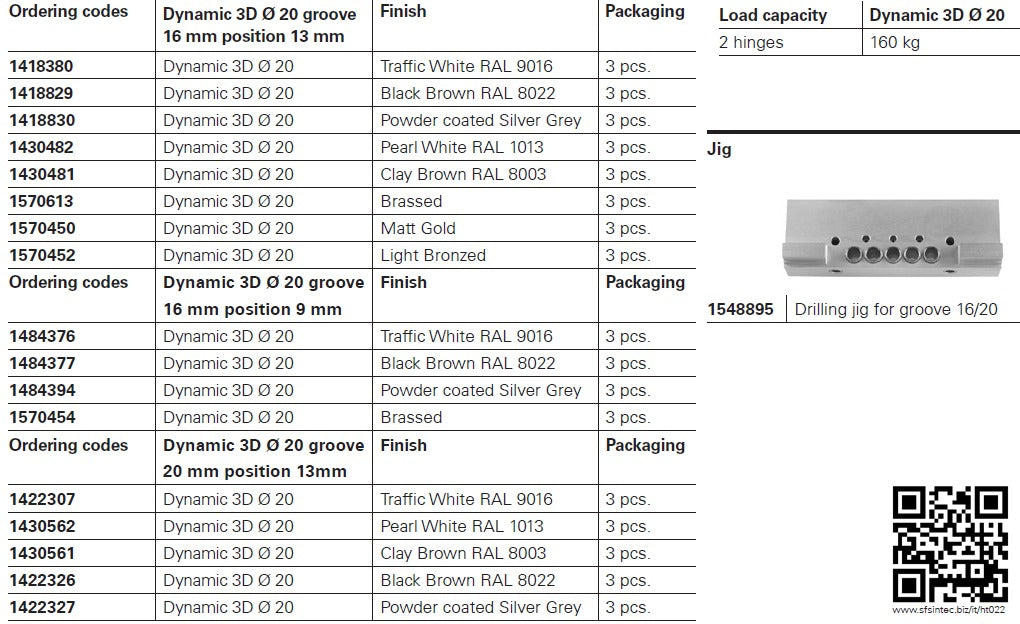

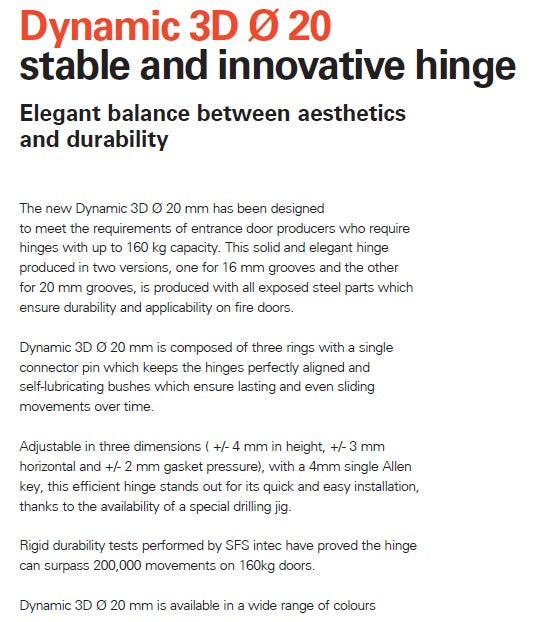

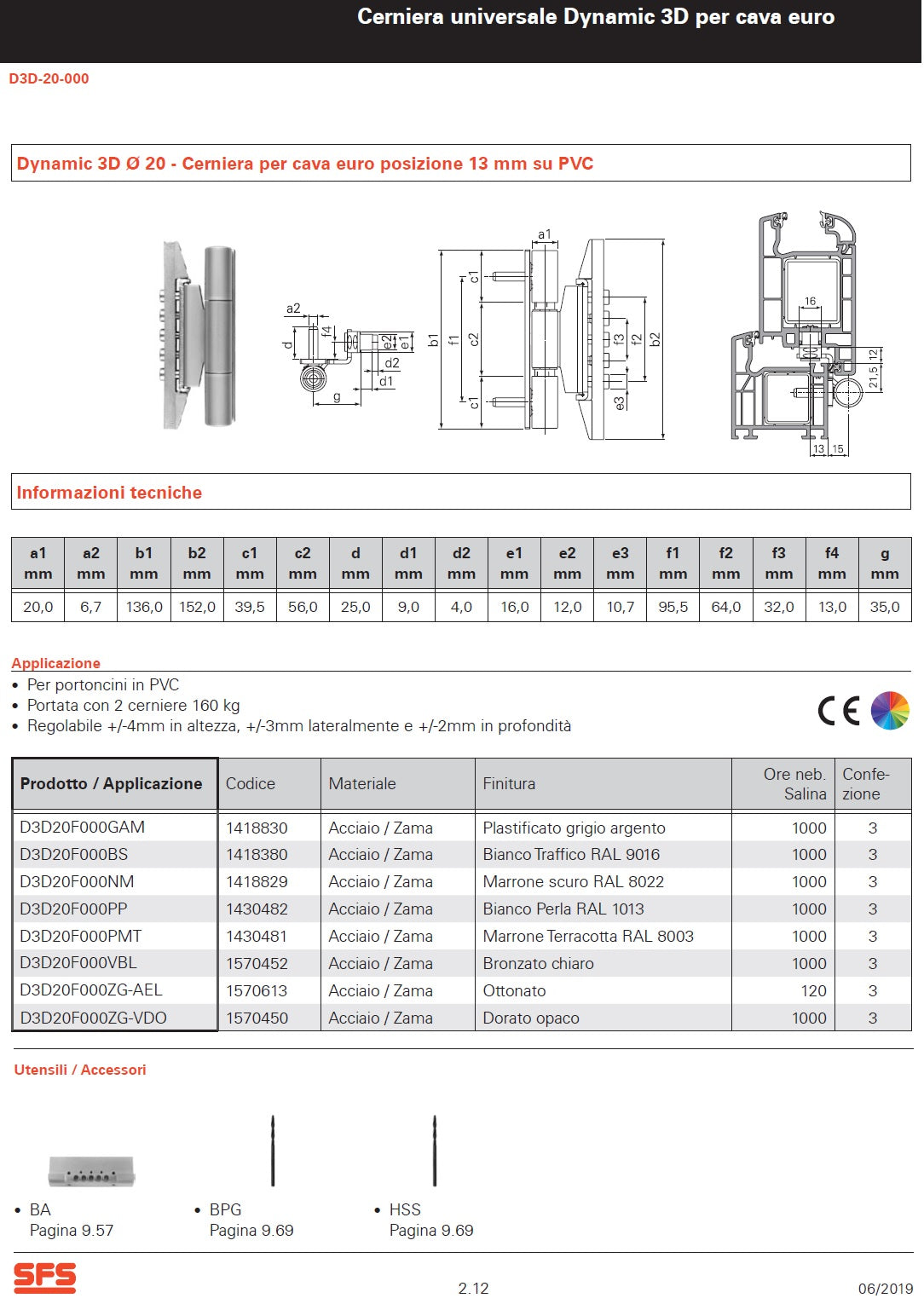

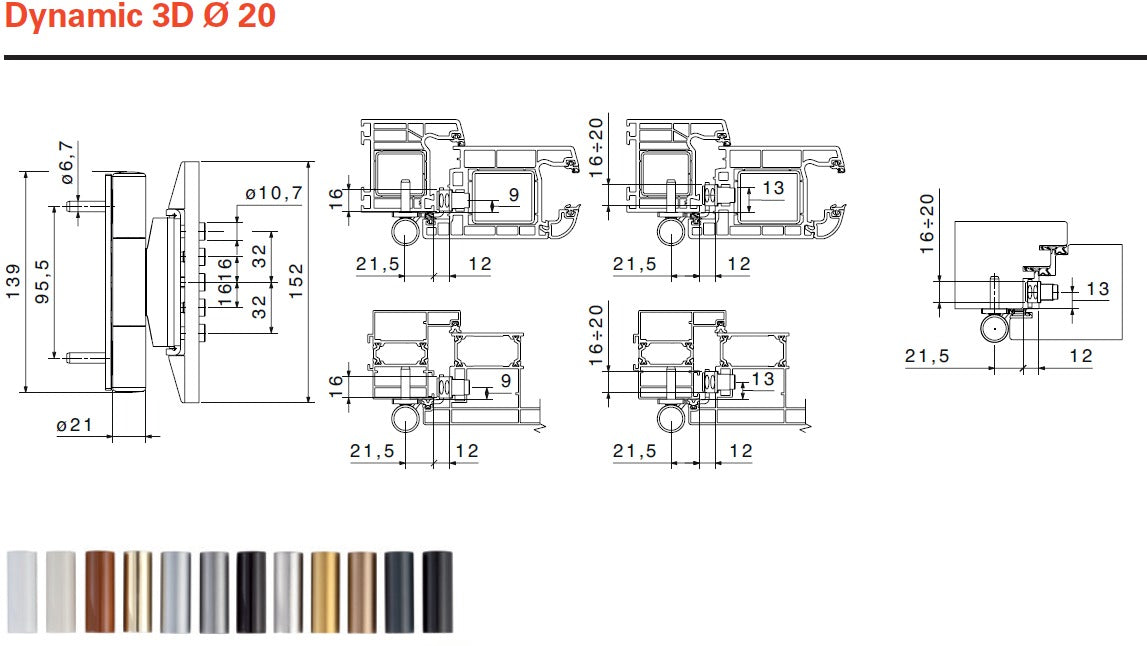

Dynamic 3D 0 20mm (16mm Groove) 160kg capacity.
(Butt Hinge only available in White RAL 9016 or Brown RAL 8022)
AU$17.25ea Inclusive GST with hinge cap.

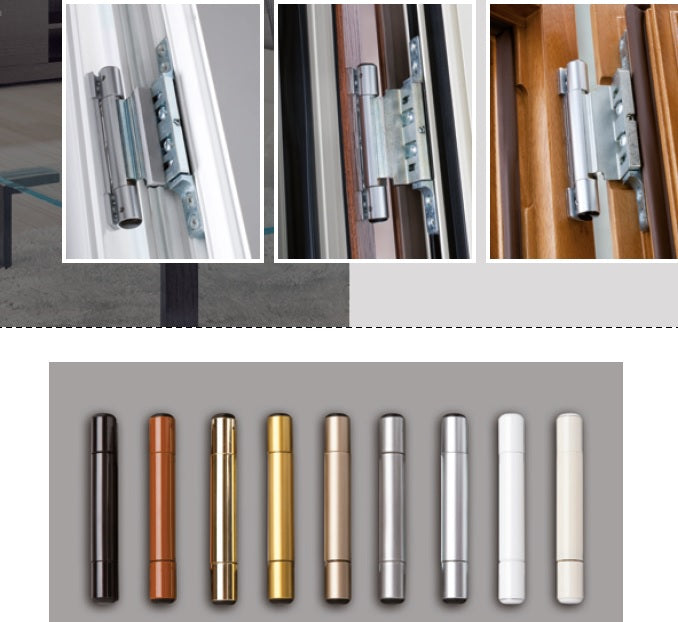

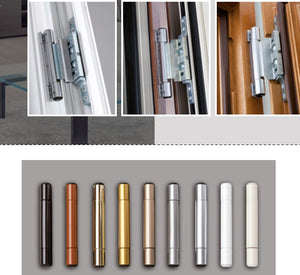

The new Dynamic 3D hinge range is characterised by its simple, aesthetically appealing design. The application range covers house and patio access doors and large windows and is ideally suited to plastic, wood and aluminum-to-wood applications.
The three perfectly in-line sleeves underline the slim and elegant design of the Dynamic 3D. A wide variety of powder-coated and metallic finishes ensure Dynamic 3D to be suitable for virtually any design, further enhancing the value of your door or window.
The Dynamic 3D is easily fitted into the normal architectural hardware milled recess (Euro-groove). Adjustable on three-dimensional settings: +/- 2mm sideways, +/- 4mm in height and a minimum of +/- 1mm gasket pressure (depending on the position of the Euro-groove). This new, three-piece hinge guarantees increased stability and perfect alignment.
The installation is also very easy, using a single drill bit and a user-friendly jig specifically developed for fast application.
As with all SFS hinges, the new Dynamic 3D achieved over 200.000 cycles, tested using a door of 140Kg, confirming once more the quality standards which our customers are accustomed to.
